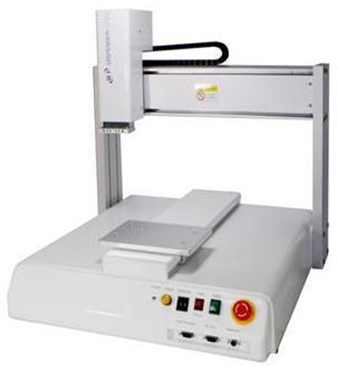

Dispensing robot : 400 x 400mm |

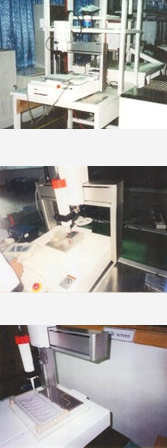

Our robots are a cost-effective way to increase throughput and quality and reduce production costs by automating repetitive fluid dispensing task. The dispensing robot can dispense liquid gaskets, seals and dots. We are able to provide a solution for every application requiring precision applications of fluids. |
Specifications :
Working area : |
400 x 400 x 100 mm |
Load worktable / Tool : |
10 kg / 5 kg |
Speed PTP XY & Z (mm/sec) : |
800 / 500 |
Repeatability : |
+/- 0.01mm/axis |
Resolution : |
0.01mm/axis |
Data memory : |
100 programs 4000 points/program |
Display : |
Teach pendant LCD |
Drive system / stepping motor |
3-phase |
Motion control : |
PTP & CP |
Interpolation Linear/Circular |
3 axis |
Teaching method : |
Teach pendant |
I/O signals : |
8 inputs / 8 outputs |
External interface : |
RS232 |
Power supply : |
AC110- 220V |
Working temperature : |
10-40·C |
Relative humidity : |
20-90% |
Dimension (WxDxH)mm : |
585 x 600 x 600 mm |
Weight : |
40 kg |
|
