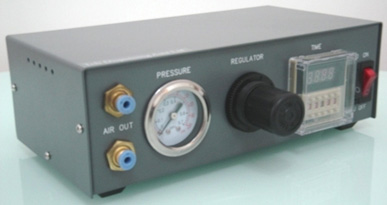

| The LX2100 is a 4-way valve controller that can be used to control one valve with dual |
| air ports simultaneously. Its quick response internal pneumatic solenoid and its adjustable |
| timing interval from 0.01 to 99.99 seconds provide an infinite range of desired deposits |
| with accuracy. |
|
|
|
|
|
|
|
| When the foot pedal is pressed, air is supplied to the valve and the valve actuated. After a |
| timed interval, the air is switched to the other port on each of the dual outlets closing the valve. |
| |
|
|
|
| When coupled with an appropriate valve, the controller will deliver accurate and repeatable |
| dots and beads for any dispensing application, whether automated or manually operated. |
