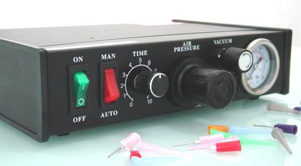

| Analog timed air dispenser |
|
|
| |
|
| The Model1200A liquid dispensing system designed to dispense material from syringes and provides a simple and economic solution to fluid dispensing. The unit is controlled with a foot pedal for hand-held dispensing application. |
| |
|
| Material include adhesive, glue, silicone, RTV, cyanoacrylate, grease, anaerobic and UV cure resins etc. |
Features
| • Manual or timer operation modes |
|
|
|
| • Foot pedal controlled |
|
|
|
| • Suck-back feature ensure no dripping |
|
|
| • Designed for wide range of application |
|
|
| • Complete with an accessory dispensing kit |
|
|
| • Timer mode dispensing time 0-1 / 0-5 / 0-10 / 0-15 seconds |
|
|
| • Manual mode, materials could be dispensed continuously until operator release the foot pedal |
Specifications
| Size : |
23.5 x 20.5 x 6.3 cm |
| Timer mode dispensing time : |
0-1 / 0-5 / 0-10 / 0-15 seconds |
| Manual mode dispensing time : |
Controlled by the foot pedal |
| Input voltage : |
220V / 110V |
| Internal voltage : |
24VDC |
| Air input : |
70-100PSI |
| Air output : |
1-100PSI |
| Weight : |
3KG |
|
 |
Accessories
| Description |
Qty |
| 30CC Barrel Adapter Assembly |
1pc |
| 30CC Barrel |
3pcs |
| 30CC PE Piston |
3pcs |
| 15 GA Blunt End Tip |
5pcs |
| 20 GA Blunt End Tip |
5pcs |
| 22 GA Blunt End Tip |
5pcs |
| 25 GA Blunt End Tip |
5pcs |
| 16A Tapered Tip |
5pcs |
| 20A Tapered Tip |
5pcs |
| Barrel Stand |
1pc |
| Foot Pedal |
1pc |
| Air Hose |
1pc |
| Power cord |
1pc |
|
 |
|
