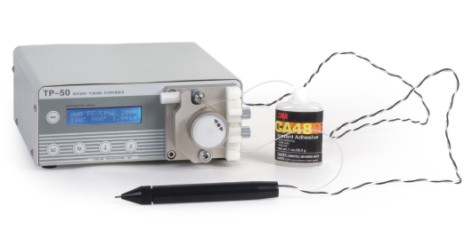

Model : TP-50
The TP-50 peristaltic pump dispenser transfers low viscosity liquids by pressure displacement applied to a turning rotor against a tube carrying material. Usually these pumps are chosen because the liquids are hazardous or difficult to work with and it is advisable to limit operator contact. Another reason is that peristaltic pumps are air free.
Features
• Air-free dispensing
• Snuff-back prevents post-dispense dripping
• Simple load mechanism also provides easy cleaning
• Manual, Timer & Cycle modes
• Large digital LCD display
• Clean room compatible> |
|
Specifications
| Weight |
3.5kg |
| Input voltage |
110V / 220V |
| Operation mode |
Manual, Timer & Cycle |
| Rotor rotation direction |
Forward / Reverse |
| Rotor rotation speed |
10-200rpm |
| Rotor rotation angle |
0-999ﾟ |
| Rotor reverse rotation angle |
0-99ﾟ |
| Time interval at cycle mode |
0-99s |
| Material viscosity |
Below 10,000cps |
| Snuff-back |
By reverse rotation |
| Dimension |
220 x 182 x 73mm |
|
 |
|
